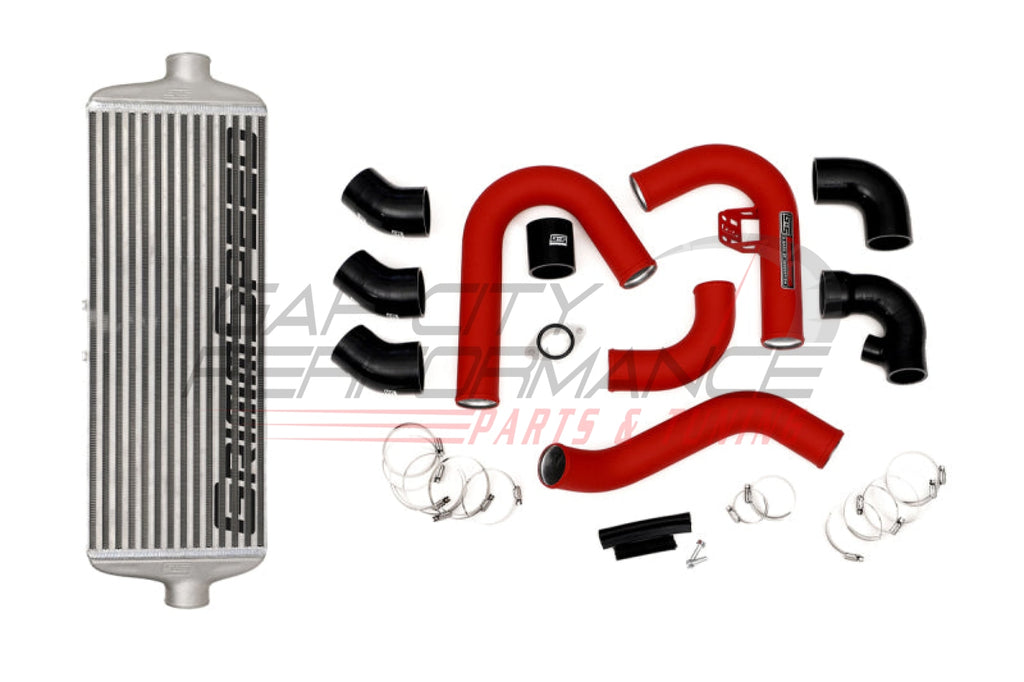

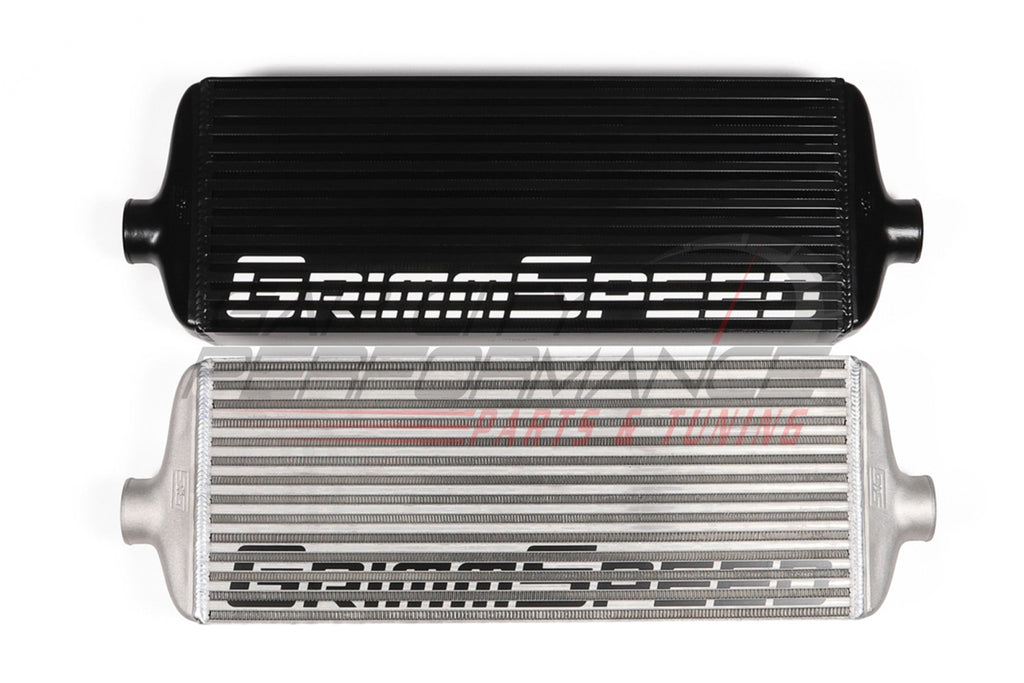

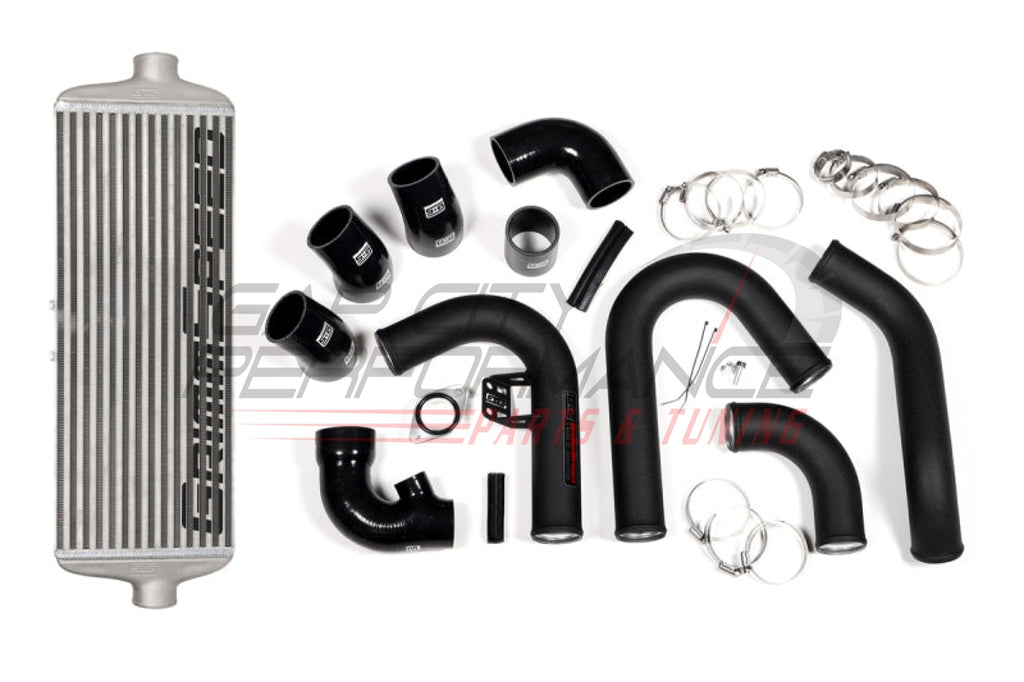

Raw or Black aluminum core finish option
27" x 11" x 4" Cross Flow Core
Durable bar and plate construction that has a perfect balance of pressure drop and heat rejection
Cast aluminum end tanks - Designed for equal flow distribution and minimum pressure drop
Steel bolt-on mounting brackets - Robust mounting solution to minimize movement and to maximize adjustability
No permanent vehicle modification - Only two tiny ribs need to be removed from the OEM undertray and a few simple cuts to the splash guard
Compatible with the factory or GrimmSpeed Intake with the removal of the factory snorkel
Pressure tested, cleaned, sealed, and guaranteed to work prior to delivery
Welded and inspected by hand in Minneapolis, MN for consistency and optimal quality control
Includes pre-applied GrimmSpeed sticker
INTERCOOLER PIPING SPECS:

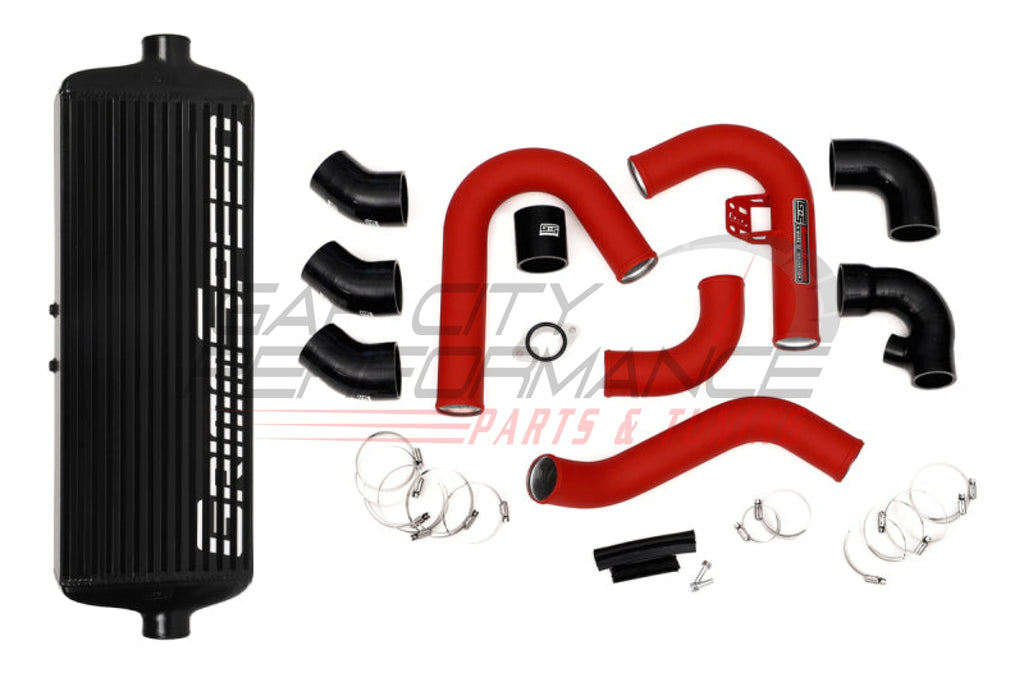

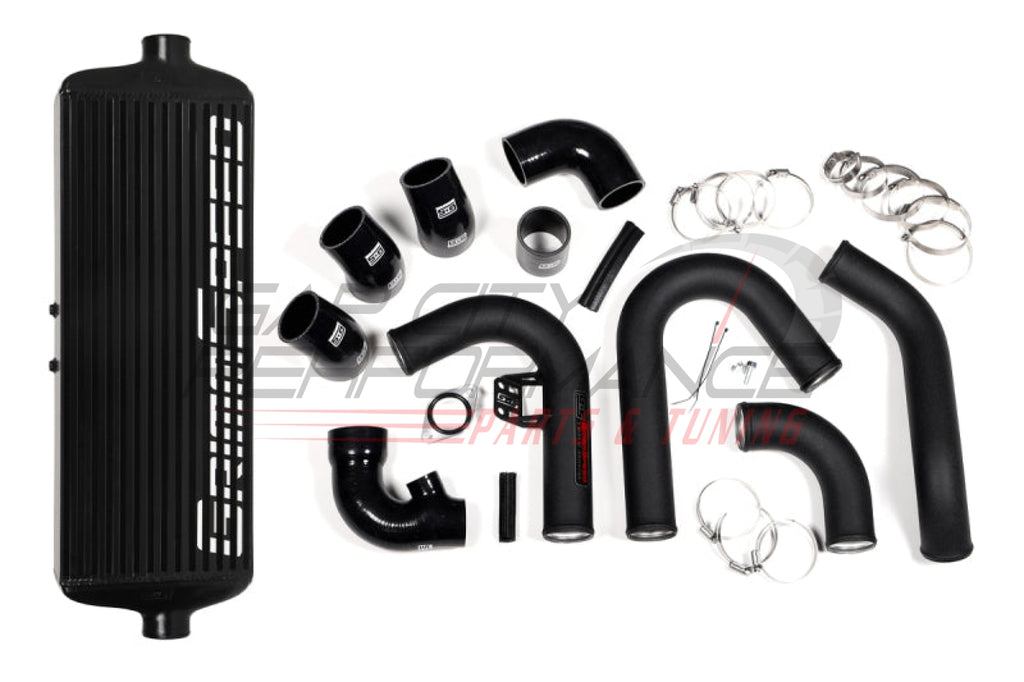

Black or Red powder-coated finish option
Thick .090 wall 2.5" diameter 6061 aluminum piping construction
Bead rolled and CNC mandrel-bent on a large radius for max flow
Lightweight and heat dispersant
Precision pipe routing - Retains factory components and avoids unnecessary trimming
Retains the factory fog light mounting
5-ply silicone couplers - Custom-molded and reinforced to withstand demanding environments
Breeze Hi-Torque Liner Clamps - Stainless steel for lasting durability and grip with an integrated liner to prevent damage to the silicone
Durable powder-coated finish keeps pipes protected against corrosion while keeping a great look
OEM bypass valve location - Eases installation and allows for use of most aftermarket BPVs

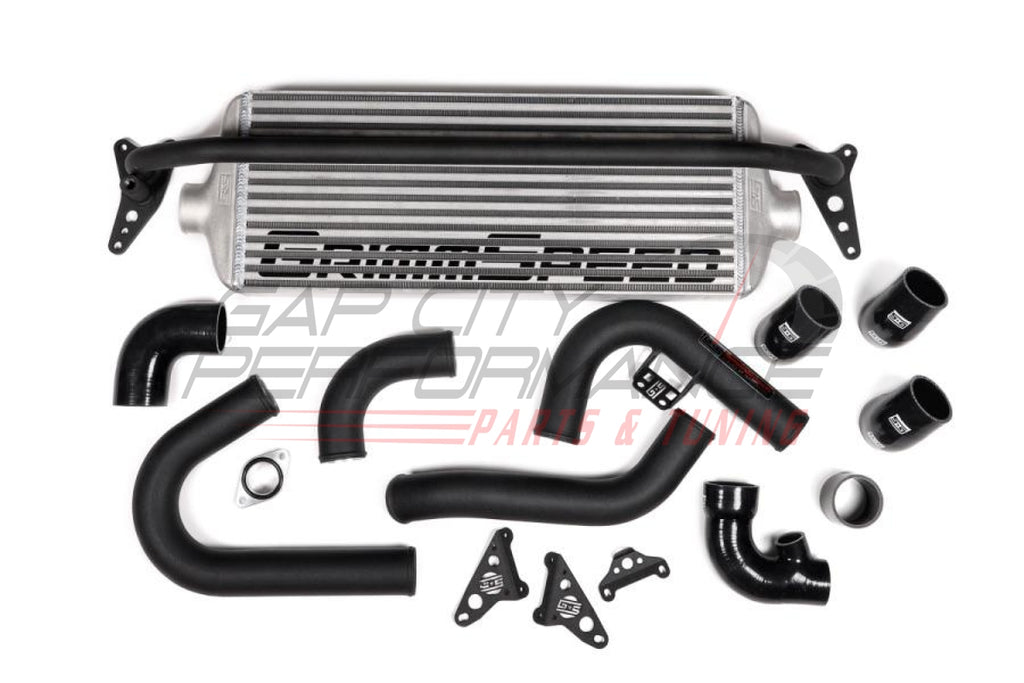

BUMPER BAR SPECS:
Thick .125 wall 1.375" diameter DOM mild steel that has been designed and built tough to outlast your vehicle
Robust .375" mounting plates - Thick for strength yet skeletoned for weight savings
Reduces chassis deflection - Maintains chassis rigidity vs not running a bumper beam
Integrated tow hook - This is perfect for the GrimmSpeed License Plate Relocation Kit (not included)
Wrinkle black powder-coated finish for extra corrosion resistance
