Equal Length EWG Header with Turbosmart Wastegates (2015+ WRX)

  • Sale
  • Regular price $1,250.00
Shipping calculated at checkout.


MULTIPLE WASTEGATE COLORS TO CHOOSE FROM
This package includes two (2) TurboSmart Gen-V WG40 wastegates!

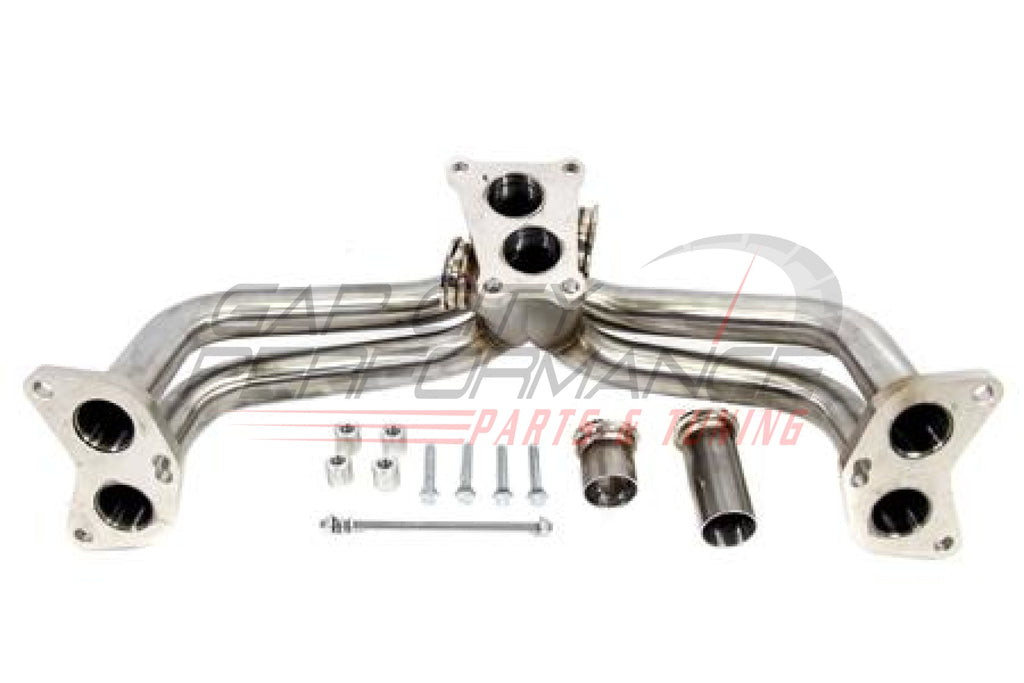

2015+ WRX Header
  • Equal length tubing design
  • For factory or factory-sized turbos with dual external wastegates
  • Includes bolts and spacers for skid plate
  • Does not include bolts, gaskets, clamps (you can reuse stock ones)
  • 304 stainless steel
  • One year warranty
  • CNC machined manifold flanges
  • Flange is .38" which is just about 3/8" thick
  • 18 gauge on the 304 S/S
  • Measured at .049" to .050"
  • Bolts directly to factory exhaust
  • 1.5” inch S/S Piping
  • Hand TIG welded
  • Precision CNC mandrel bend piping
  • One piece design
  • Brand new in box

  • Turbosmart Wastegate

  • Features Turbosmart's unique  collar-locking system
  • Variable actuator cap and base
  • Strap -type V-band clamps
  • Liquid cooling 1/8" NPT ports
  • Actuators are interchangeable across the range allowing those who need a large wastegate in a tight space which will allow you to run a smaller actuator on the larger body
  • The unique variable adjustment design will allow the wastegate actuator base to be oriented independently from the weld flanges, the cap is also completely independent and indexable in 12 different positions compared to the actuator base and body to allow fitment in confined positions
  • Upgradable and serviceable
  • Out-flows all competitors
  • Liquid cooling ports for better thermal performance
  • 14 psi spring included
  • 1/8" NPT ports for maximum boost control and response while maintaining a high level of compatibility for fittings
  •
